Heavy-Duty Wooden Auto Ramps – Digital Plans Download

$5.00

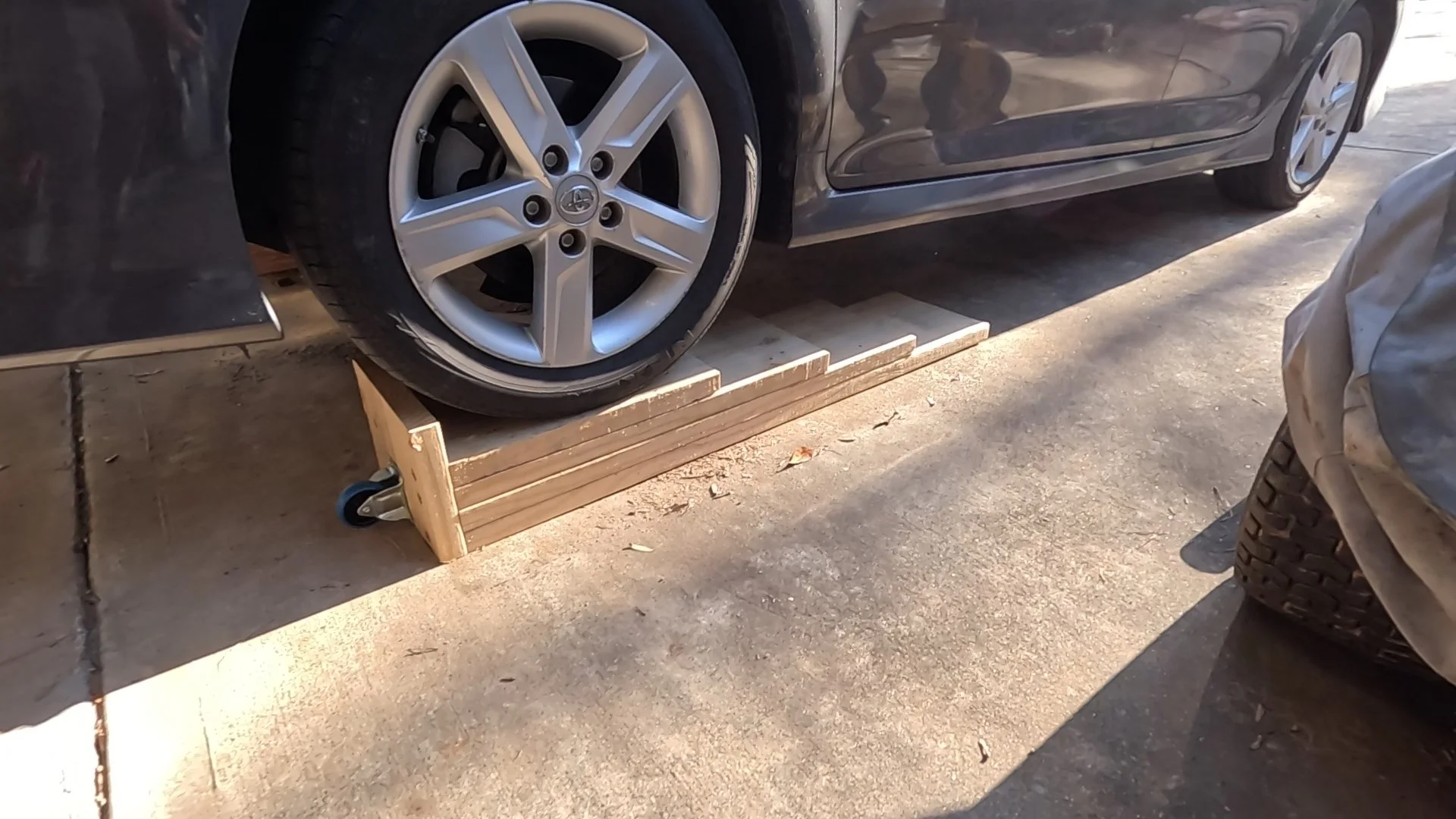

The Safest, Easiest Way to Lift Your Car is to Drive It Up.

The Problem: Getting your car in the air for routine maintenance shouldn't feel like a gamble. Hydraulic jacks can fail, jack stands are a pain to position, and cheap plastic ramps often slide across the garage floor or crack under pressure. You need a solution that is rock-solid and ready in seconds.

The Solution: Build your own Solid Wood Service Ramps with plans from The Garage Engineer.

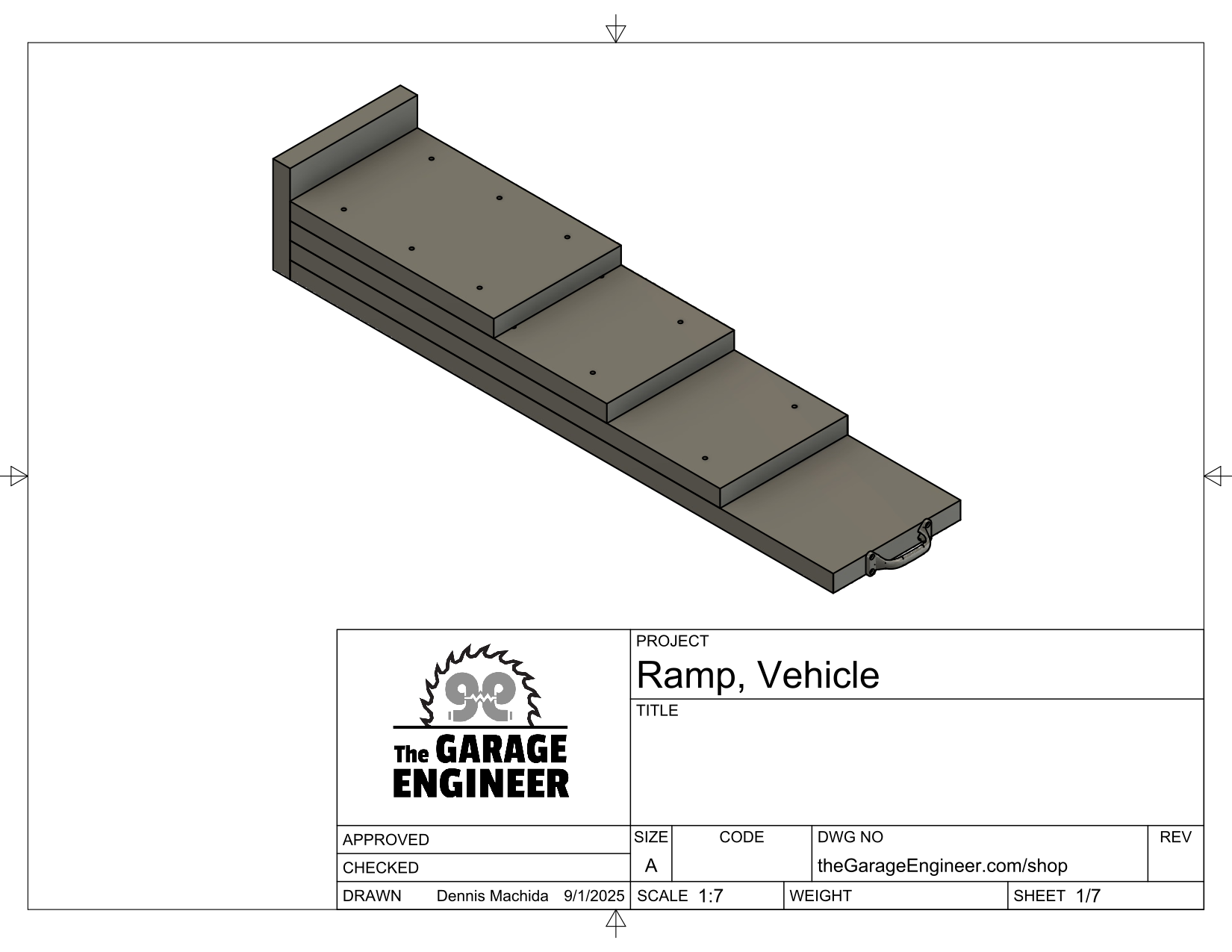

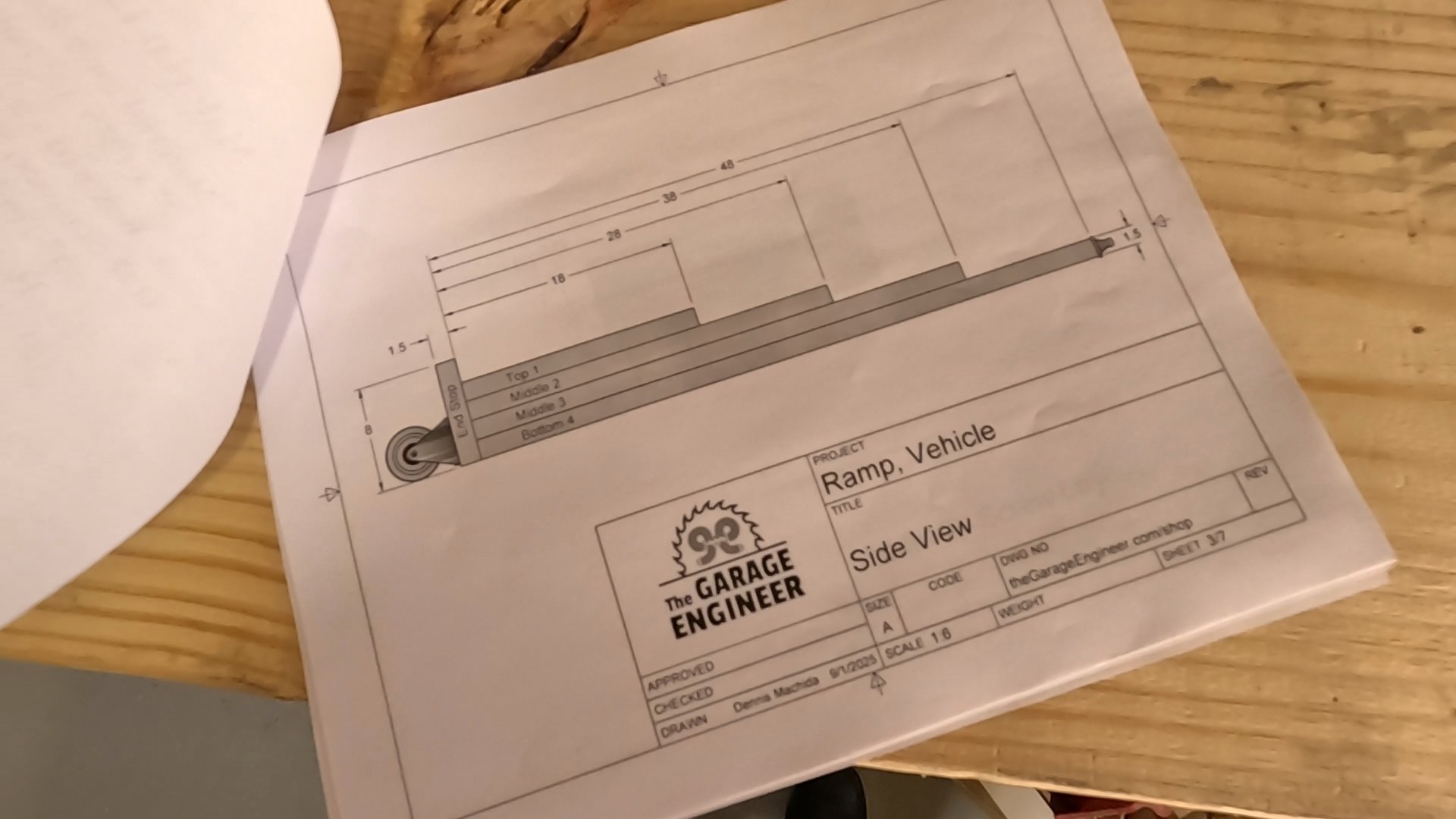

These digital blueprints guide you through building a set of heavy-duty, solid lumber ramps. Designed with a 6-inch rise, they provide the perfect clearance for oil changes, inspections, and detailing without the hassle of hydraulics.

Why These Plans?

  • Integrated Safety Stop: The design features a built-in "stop block" at the top of the ramp, giving you tactile feedback so you know exactly when to stop driving—preventing over-travel.

  • Material Efficiency: These plans are optimized for cost and simplicity. You only need one standard 2" x 12" x 12' board per ramp.

  • Wide Tire Platform: Utilizing 2x12 lumber means a wider surface area for your tires, providing superior stability compared to narrow 2x4 stack designs.

  • Instant Access: No pumping jacks. No crawling on the floor. Just place them, drive up, and get to work.

The Safest, Easiest Way to Lift Your Car is to Drive It Up.

The Problem: Getting your car in the air for routine maintenance shouldn't feel like a gamble. Hydraulic jacks can fail, jack stands are a pain to position, and cheap plastic ramps often slide across the garage floor or crack under pressure. You need a solution that is rock-solid and ready in seconds.

The Solution: Build your own Solid Wood Service Ramps with plans from The Garage Engineer.

These digital blueprints guide you through building a set of heavy-duty, solid lumber ramps. Designed with a 6-inch rise, they provide the perfect clearance for oil changes, inspections, and detailing without the hassle of hydraulics.

Why These Plans?

  • Integrated Safety Stop: The design features a built-in "stop block" at the top of the ramp, giving you tactile feedback so you know exactly when to stop driving—preventing over-travel.

  • Material Efficiency: These plans are optimized for cost and simplicity. You only need one standard 2" x 12" x 12' board per ramp.

  • Wide Tire Platform: Utilizing 2x12 lumber means a wider surface area for your tires, providing superior stability compared to narrow 2x4 stack designs.

  • Instant Access: No pumping jacks. No crawling on the floor. Just place them, drive up, and get to work.

What You Get (Instant Digital Download):

  • Material List: A concise shopping list for the hardware store.

  • Cut Sheet: Precise measurements to minimize waste.

  • Assembly Guide: Step-by-step instructions to put it all together.

  • Fastening details: Exact screw placement for each layer for maximum hold.

Project Specs:

‍ Material for 2 Ramps:

  • (2) 2" x 12" x 12' Pine Lumber

  • (1) Box #10 - 2.5” Deck Screws

  • (8) Simpson Stongties - 4" Timber Lag Screws

  • (2) Handles

  • (2) 3" diameter x 7/8" Casters, Fixed

TOOLS REQUIRED:

  • Circular Saw (or Miter Saw)

  • Power Drill / Driver

  • Tape Measure

  • Pencil

  • Safety Glasses

    TIME TO BUILD:

    • Approx. 1–2 Hours

⚠️ LEGAL DISCLAIMER & LIABILITY WAIVER

By purchasing and using these plans, you acknowledge and agree to the following:

The Garage Engineer is not responsible for any injury, property damage, or loss sustained while building or using these ramps. These plans are provided as suggested ideas only and have not been verified through professional engineering testing or certification.

The use of these plans and the resulting ramps is strictly at your own risk. The buyer assumes full responsibility for the quality of materials used, the construction process, and the safe operation of the vehicle when using the ramps. If you are unsure about the safety or construction, please be advised by a professional expert before proceeding.
